GA 75+ Premium Compressor
• High performance Free Air Delivery.
• Premium quality at the lowest initial investment.
• Integrated refrigerant dryer.
• Standard Elektronikon ® controller (optional Touch controller).
(A)
Integrated highly efficient R410A dryer
• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
• Incorporates optional UD + filter according to Class 1.4.2.
(B)
NEOS drive
• Atlas Copco’s in-house designed inverter for GA VSD compressors.
• IP5X protection degree.
• A robust, aluminum enclosure for trouble-free operation in the harshest conditions.
• Fewer components: compact, simple and user-friendly.
(C)
Cubicle cooling booster
• Cubicle in overpressure minimizes ingress of conductive dust.
• Electrical components remain cool, enhancing lifetime of components.
(D)
Elektronikon ® for remote monitoring
• Integrated smart algorithms reduce system pressure and energy consumption.
• Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.
(E)
Heavy-duty air intake filter
• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.

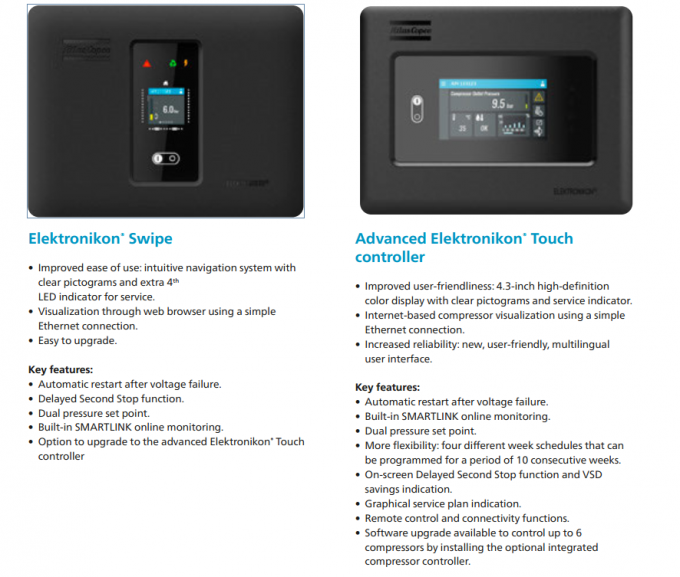

Advanced Elektronikon ® Touch controller
• Improved user-friendliness: 4.3-inch high-definition color display with clear pictograms and service indicator.
• Internet-based compressor visualization using a simple Ethernet connection.
• Increased reliability: new, user-friendly, multilingual user interface.
Key features:
• Automatic restart after voltage failure.
• Built-in SMARTLINK online monitoring.
• Dual pressure set point.
• More flexibility: four different week schedules that can be programmed for a period of 10 consecutive weeks.
• On-screen Delayed Second Stop function and VSD savings indication.
• Graphical service plan indication.
• Remote control and connectivity functions.
• Software upgrade available to control up to 6 compressors by installing the optional integrated compressor controller.
A step ahead in
monitoring and controls
The new generation Elektronikon® operating system offers a great variety of control and monitoring features that allow you to increase your compressor’s efficiency and reliability. To maximize energy efficiency, the Elektronikon® controls the main drive motor and regulates system pressure within a predefined and narrowpressure band.
