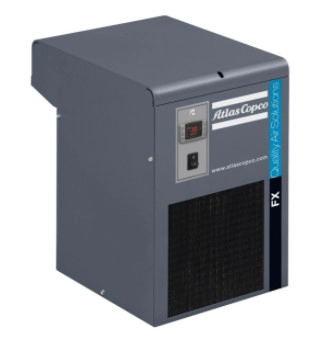

Atlas Copco Cools Compressed Air Dryers F25 Refrigerant Dryer Clean Air
Dry, clean air: reliable, safe production
The Atlas Copco F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs
Features & Benefits
Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy
Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play
Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display
Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant
| Model | Inlet
capacity | Pressure
drop | Power
consumption
@ 50Hz | Maximum
working
pressure | Dimension(mm) | Weight | Compressed
air
connections |
| l/s | bar | W | bar | L | W | H | kg |
| F-25 | 25 | 0.25 | 360 | 13 | 550 | 370 | 800 | 34 | G 1" |
Available in 230V -1 Phase -50Hz and 220V -1 Phase -60Hz versions.
Refrigerant types:
R134a for F 6-35, R410a for F 55-335
Reference conditions:
Ambient temperature: 25 °C
Inlet temperature: 35 °C
Working pressure: 7 bar(g)
Limitations:
Maximum ambient temperature: 45 °C
Minimum ambient temperature: 5 °C
Maximum inlet temperature: 55 °C
Maximum working pressure @ 13 bar
Correction factors:
Correction factors for different ambient temperatures
Ambient temperature °C 25 30 35 40 45
Correction factor 1 0.91 0.81 0.72 0.62
Correction factors for different inlet temperatures
Inlet temperature °C 25 30 35 40 45 50 55
Correction factor 1 1 1 0.82 0.69 0.58 0.45
Correction factors for different inlet pressures
Inlet pressure (bar) 5 6 7 8 9 10
Correction factor 0.9 0.97 1 1.03 1.06 1.08
