ATLAS COPCO COOLS COMPRESSED AIR DRYERS F335 REFRIGERANT DRYER CLEAN AIR

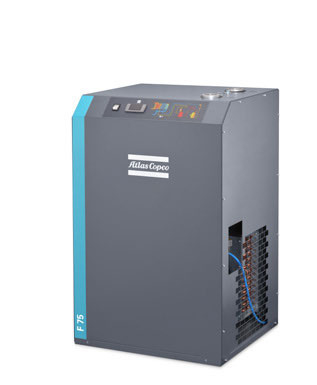

Compressed Air Dryers Cools Refrigerant Dryer F-335

Dry, clean air: reliable, safe production
The Atlas Copco F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs

Features & Benefits

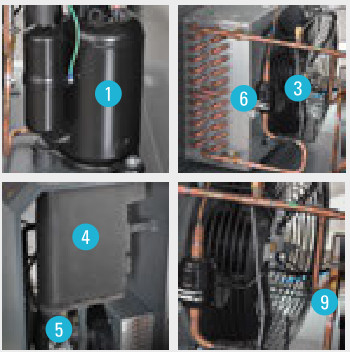

Great performance and reliability
• Lower production and product failure rate
• Steady pressure dewpoint
• Quality rotary compressor with low power requirements
• Efficient and reliable 3-1 heat exchanger
• Hot gas bypass valve saves energy

Cost Savings
• Your tools last longer
• Fewer system and tool repairs
• Low maintenance Easy installation and operation
• Plug and play

Easy installation and operation
• Plug and play
• Only one electrical connection
• Digital controller with easy pressure dewpoint display

Environment-Friendly
• Low power consumption
• Low impact R134a/R410a refrigerant

Available in 230V -1 Phase -50Hz and 220V -1 Phase -60Hz versions.

Refrigerant types:
R134a for F 6-35, R410a for F 55-335
Reference conditions:
Ambient temperature: 25 °C
Inlet temperature: 35 °C
Working pressure: 7 bar(g)
Limitations:
Maximum ambient temperature: 45 °C
Minimum ambient temperature: 5 °C
Maximum inlet temperature: 55 °C
Maximum working pressure @ 13 bar

Correction factors:

Correction factors for different ambient temperatures

Ambient temperature °C 25 30 35 40 45

Correction factor 1 0.91 0.81 0.72 0.62

Correction factors for different inlet temperatures

Inlet temperature °C 25 30 35 40 45 50 55

Correction factor 1 1 1 0.82 0.69 0.58 0.45

Correction factors for different inlet pressures

Inlet pressure (bar) 5 6 7 8 9 10

Correction factor 0.9 0.97 1 1.03 1.06 1.08
