ATLAS COPCO NGM4+ NITROGEN GENERATOR ON-SITE
Specifications
| Type | Nitrogen Purity | Dimension | Weight |
| | 95% | 96% | 97% | mm | in | kg | ibs |
| NGM 4 | FND Nm³/h | 97.5 | 66.0 | 34.0 | 820 x 772 x 2090 | 32.3 x 30.4 x 82.3 | 445 | 981 |
| FND scfm | 56.5 | 38.4 | 19.8 |
| Air factor | 2.2 | 2.7 | 4.2 |
A secure supply
of nitrogen and oxygen
Whether your company is specialized in chemical manufacturing, electronics, laser cutting or food and
beverage, a dependable supply of industrial gas is crucial. Compared to the on-demand delivery of gas bottles
or tanks, on-site production of gas offers a wealth of advantages ranging from cost savings to continuous
availability. Atlas Copco’s advanced nitrogen and oxygen generators offer you the ultimate solution: flexible
on-site production of industrial gas at the lowest possible cost.
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery charges.
• Limited maintenance costs.

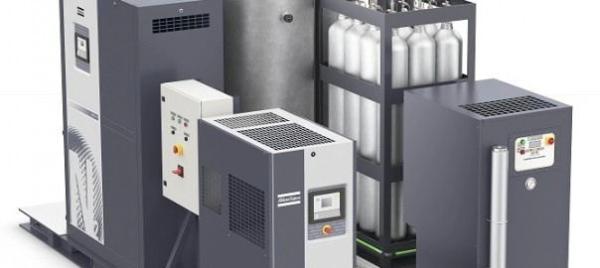

All-in-one high pressure nitrogen skid
The latest addition to Atlas Copco’s specially developed equipment is the all-in-one high pressure nitrogen
skid, a true alternative for liquid nitrogen or bottles. Combining a small footprint, easy installation, high reliability and supreme energy efficiency, this unique nitrogen skid truly stands out.

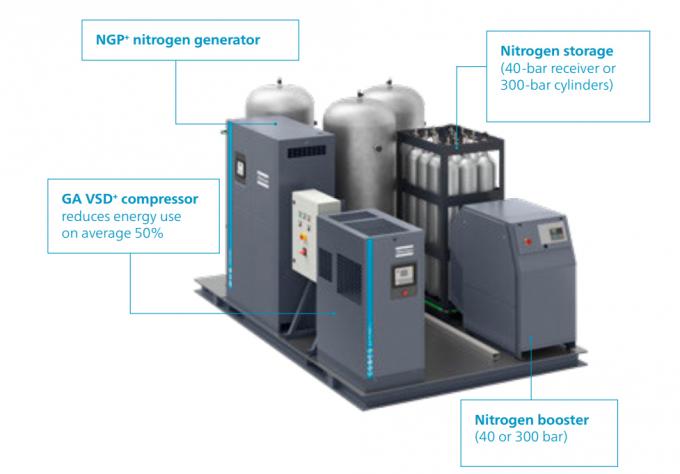

The all-in-one solution
All nitrogen skid components are built to Atlas Copco quality and efficiency standards. They are tested for optimal performance and reliability.
Laser cutting
Laser cutting requires a reliable supply of high pressure nitrogen. With its energy efficiency, ease of use and small footprint, the Atlas Copco 300-bar nitrogen skid is the ideal solution.
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
