Lubricated Centrifugal Air Compressor Rotary Screw MSG TURBO-AIR 3000 300-600KW

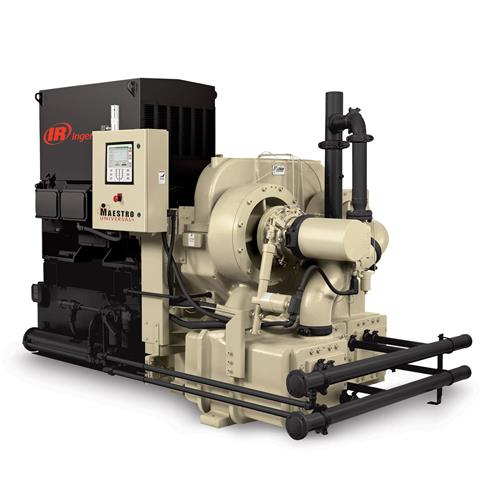

Product description: MSG TURBO-AIR 3000 300-600kw Centrifugal Air Compressor

The MSG TURBO-AIR 3000 was built on a standard frame, featuring highly-engineered air flow component. It is designed for easy, low-cost installation and operation. The MSG TURBO-AIR 3000 was designed with a built-in aftercooler that eliminates the need for a separate pipeline type cooler, and a packaged check valve for faster installation and easier maintenance.

COMPONENTS

• Impellers: Five-axis-milled impellers designed an manufactured with advanced techniques and methods

• Vaned Diffusers: Optimized vane design and placement for increased efficiency

• Lubrication System: Self-contained, low-pressure lubrication system

• Intercoolers/Aftercooler: Water-in-tube intercooler and aftercooler bundles slide out for easy inspection and cleaning

• Advanced Pinion Bearing Design: Designed for extended life and operation at any operational load.

• Seals: Designed with non-contacting and non-wearing labyrinth air and oil seals. No buffer air required for oil-free air. Do not require periodic replacement like carbon ring seals.

• Horizontally Spilt Gearbox: Allows for easy access when the jobsite maintenance policy requires periodic inspection.

• Variable Inlet Guide Vanes: Variable inlet guide vanes can offer power savings of up to 9% when operating in turndown. Inlet guide vanes impart a whirling motion to the inlet air flow in the same direction as the impeller operation, reducing the work input. Net power savings can be realized at reduced flow or on days colder than the design temperature. Inlet guide vanes are positioned close to the inducer of the impeller to maximize performance

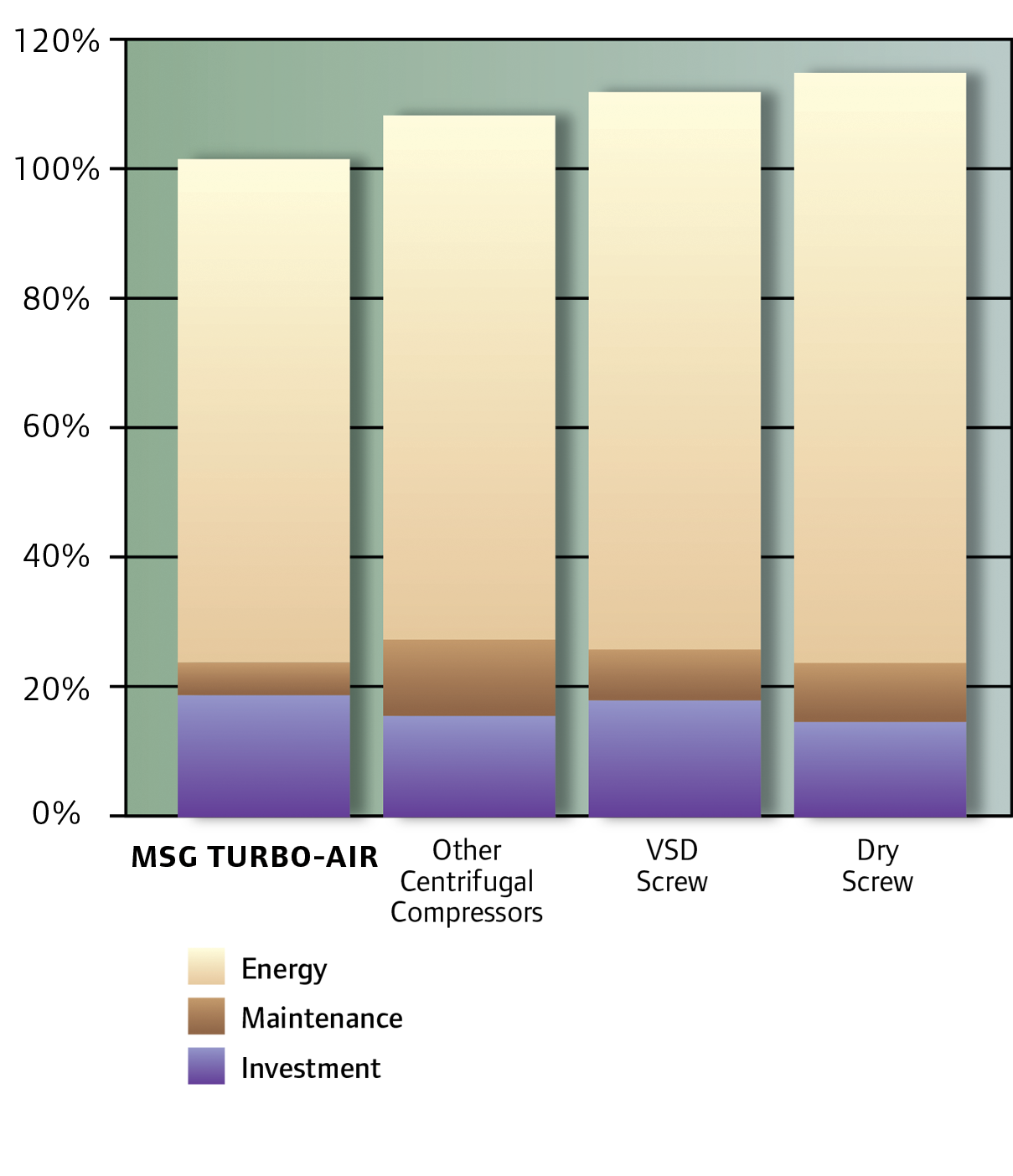

• Life-Cycle Cost Comparison

  (over 10 years of operation at 80% loaded)



  Specification		Metric	Imperial
  Standard Input Power		300-600kw	400-800hp
  Discharge Pressure		3.5-10.3 barg	50-150psig
  Inlet Flow		55-120m3/m	2000-4285cfm
  Weight		5543 kg	12000lb

  1.Q: Are you a manufacturer or trading company?

  A: We are a professional Ingersoll Rand agent in China and also we produce air compressor in OEM and ODM service

  2.Q: How long is the warranty?

  A: Our officially promised warranty time is 1year from the date of delivery.

  3.Q: Do you provide 0DM/0EM or customized service?

  A: We're professional air compressor factory OEM/ODM are available based on your requirements.

  In order to support different customers. we are able to supply:

  1),reciprocating air compressors

  2),oil-flooded air compressors

  3),oil-free air compressors

  4), centrifugal air compressors

  4.Q: What certifications you have?

  A: We have ISO certifications.

  5.Q: What's the MOQ?

  A: The MOQ is 1pcs.

  6.Q: When will you delivery?

  A: Usually it takes 15-20 days after receiving the payment.

  ISO 8573-1 Certified Oil-Free Air

  • Prevents oil contamination of your system
  • Limits the potential for compressed air pipeline fires caused by oil carryover
  • Eliminates costly waste disposal problems associated with oil-laden condensate
  • Eliminates the expense and associated maintenance requirements of oil-removal filters, since no oil enters the compressed air stream in the compressor

  Simple Installation

  • True unloading capability helps to take advantage of opportunities for energy savings
  • Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
  • Reduced number of external connections
  • Compact design reduces required floor space
  • Meets OSHA’s sound level requirements without sound enclosure

  Low-Cost Operation

  • True unloading capability helps to take advantage of opportunities for energy savings
  • Increased uptime compared to alternative technologies translates into reduced operating life-cycle costs
  • Excellent part-load efficiencies for any operating load
  • No sliding or rubbing parts in the compression process causing wear or efficiency loss
