330-6600l/S Air Dryer Refrigerant Type , Stable High Temperature Refrigerated Dryer

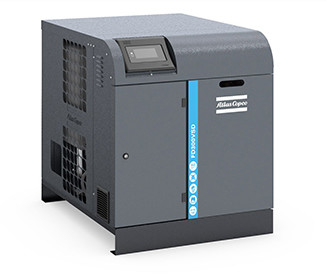

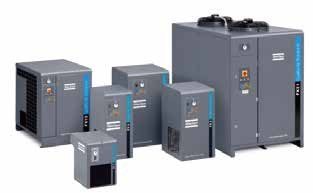

Atlas Copco Refrigeration dryer F330-6600 capacity 330l/s~6600l/s

Dry, clean air: reliable, safe production
The Atlas Copco F dryer cools compressed air to remove all moisture:
- Protect your tools
- Safeguard your products
- Minimize maintenance
- Reduce costs

F series freezer dryer uses the principle of refrigeration to cool the compressed air, so that the moisture in the compressed air is saturated and precipitated, and finally the compressed air is dried.
The design feature of the F-series refrigerated dryer is that the dried compressed air will be reheated by exchanging with the inlet compressed air before leaving the desiccant, and the inlet compressed air will be pre-cooled.
This is beneficial to reduce the consumption of cooling energy, and because the outlet temperature is increased, the possibility of condensate water reappearing due to the temperature drop of the back-end management is reduced.

Features & Benefits

1. There is no compressed air loss in the whole drying process, and the electronic drain valve is also equipped with zero air consumption.

2. The performance is stable, and the pressure dew point reaches the best state of 3-10 degrees Celsius.

3. Reliable operation comes from high-quality component design and efficient refrigeration control system.

4. All use environmentally friendly refrigerants.

330l/S Air Dryer Refrigerant Type

6600l/S Air Dryer Refrigerant Type

Stable High Temperature Refrigerated Dryer
