QD+ 190 Bar Oil Vapour Removal Filter 0.003mg/M3 Aluminum Alloy

Atlas Copco Qd(+) Series Compressed Air Filters High Performance Oil Vapor Filters

High Performance Oil Vapor Filters

QD(+) filters efficiently reduce hydrocarbons, odors and oil vapor in your compressed air stream to protect your investment, equipment and processes. The activated carbon layers will, by the use of adsorption, reduce the residual oil content to less than 0.003 mg/m³. The pressure drop is low and stays minimal during the lifetime of the filter.

YOUR BENEFITS

Maximum oil vapor removal

Highly efficient activated carbon layers.

Significant energy savings & limited system operating costs

Low pressure losses.

High reliability

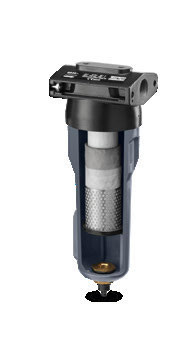

High-performance stainless steel cores, double O-rings, epoxy sealed caps, and anti-corrosive coated filter housing.

Easy maintenance

External ribs on the threaded housing, or a rotating bottom cover for the welded housings, and push-on elements.

Options

• Filter connection kit for easy mounting in series (10+ - 550+ l/s and 12-690 l/s).

• Wall mounting kit simplifies installation (10+ - 550+ l/s and 12-690 l/s).

For sizing and dimensions, please refer to the product pages of the DD(+) & PD(+) Series.

Certification
• ISO 8573-4:2001

• ISO 12500-3:2009

190Bar Oil Vapour Removal Filter

Oil Vapour Removal Filter 0.003mg/M3

Aluminum Alloy Oil Vapor Filter

QD+ 190 Bar Oil Vapour Removal Filter 0.003mg/M3 Aluminum Alloy Images
