ISO 8573 Multipurpose Air Compressor Parts , 20-1800 L/S Activated Carbon Tower

Atlas Copco Qdt Series Compressed Air Filters Activated Carbon Towers For Optimal Oil Vapor Filtration

Activated Carbon Towers For Optimal Oil Vapor Filtration

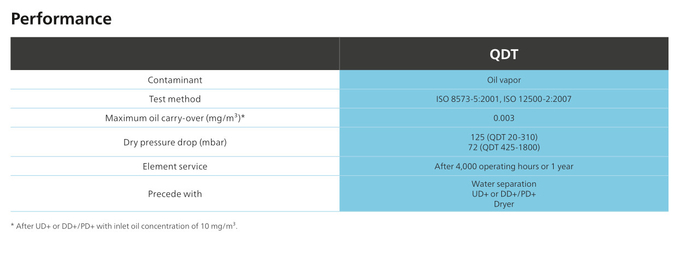

The high efficiency activated carbon tower is capable of removing hydrocarbons, odors and oil vapor from compressed air. The activated carbon will, by the use of adsorption, reduce the residual oil content to lower than 0.003 mg/m³. The pressure drop is low and stays minimal during the filter’s lifetime.

YOUR BENEFITS

Maximum oil vapor removal

Superb activated carbon material.

Low pressure drop

Optimal internal flow path.

High reliability

Robust design and optimal filter material.

Example

• Working temperature 50°C, pressure 12 bar(g), compressed air flow 120 l/s.

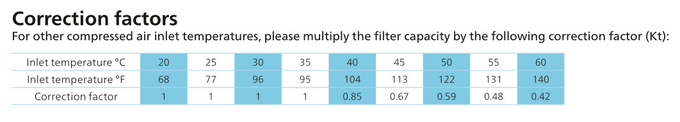

• Multiply the nominal capacity of the selected filter with the corresponding correction factors

at the required working temperature and pressure to obtain the capacity at operating condition

- QDT 150: 150l/s * 0.59 * 1.11 = 98l/s => A QDT 150 filter is not large enough

- QDT 195: 195l/s * 0.59 * 1.11 = 128l/s => A QDT 195 filter is the correct size

Options

• Oil indicator ensures pure air.

• Wall mounting kit for easy installation (20 – 185 l/s).

Certification
• ISO 8573-4:2001

• ISO 12500-3:2009
