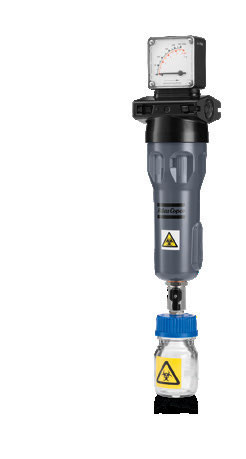

Atlas Copco Mv Series Compressed Air Filters Medical Vacuum Filters
Medical Vacuum Filters For Optimal Protection Of Man And Machine
Medical vacuum filters are installed at the inlet of the vacuum pump to remove any liquid, solid or bacterial contamination which could damage the vacuum pump and biologically infect the downstream air. Our innovative medical vacuum filtration solutions comply with HTM medical standards.
YOUR BENEFITS
Maximum contaminant removal
Removal of dry and wet dust, particulates, oil aerosol and water droplets. High-efficiency glass fiber and fleece media.
Significant energy savings & limited system operation cost
Optimal design and filter media allow for low pressure losses.
High reliability
High performance stainless steel cores, double O-rings, epoxy sealed caps and anti-corrosive coated filter housing.
Easy maintenance
External ribs on the threaded housing and push-on elements.
Monitoring of energy use
Differential pressure indication show the pressure loss.
Applications
• Medical
• Dental
• Veterinary

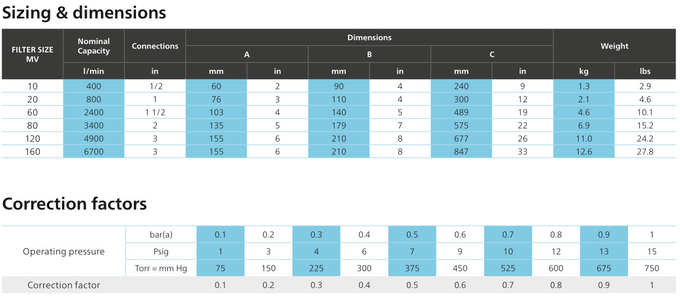

Example
• Working vacuum 300 mbar(a), capacity 1,000 l/min.
• Multiply the nominal capacity of the selected filter with the corresponding correction factor at the required
working vacuum to obtain the correct capacity:
- Size 60: 2,400 l/min * 0.3 = 720 l/min => the 60 filter size is not large enough.
- Size 80: 3,400 l/min * 0.3 = 1,020 l/min => the 80 filter size is the size to select.
